| Description: | ||

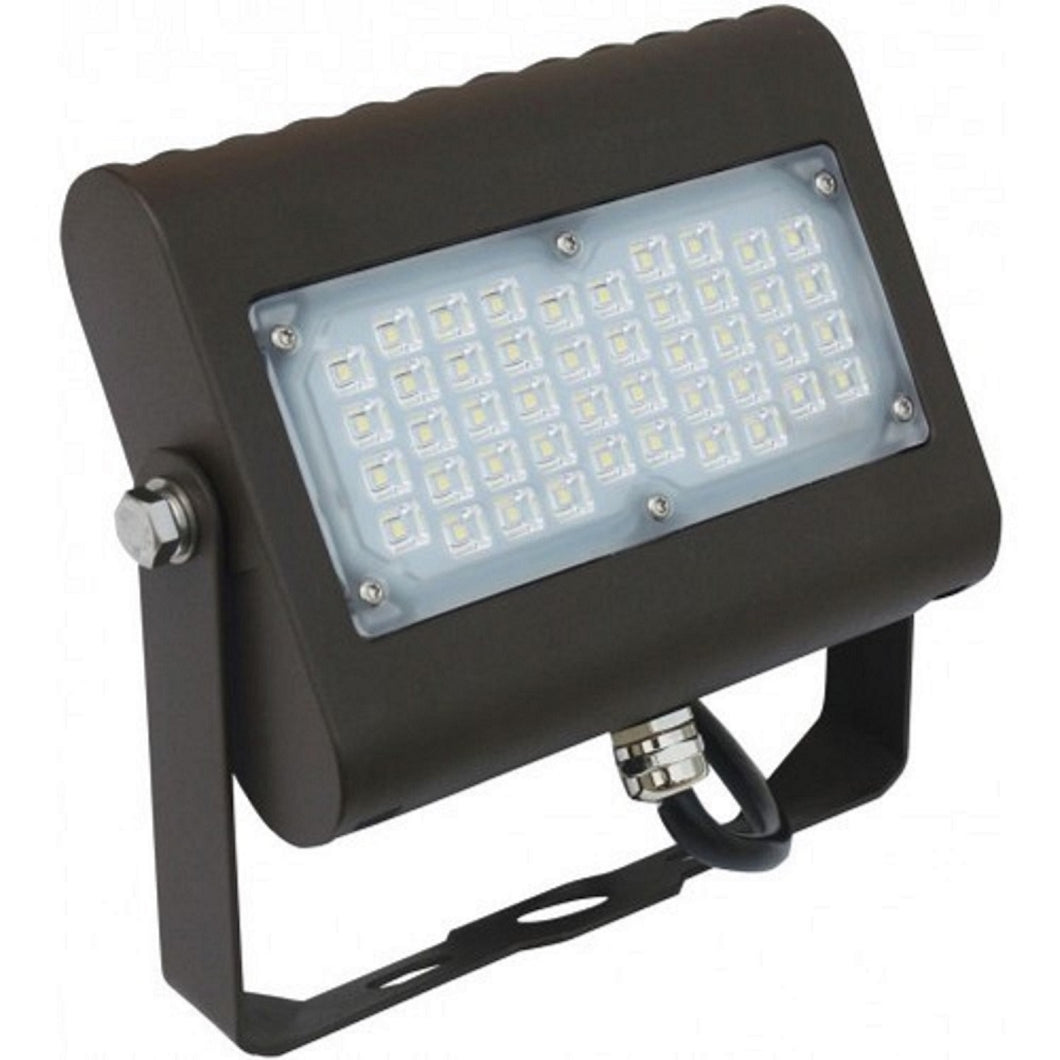

| The LFL7 is a powerful LED Flood Light ideal for outdoor applications such as exterior building lighting, sign lighting, loading docks, or warehouses. Compared to traditional flood lighting, the slim design of these Ultra-Bright LED Flood Lights makes them lighter in weight, easy to install, and a very attractive upgrade to traditional flood lighting. Unlike other Flood Lights, the LFL7 can be mounted and wired without having to access inside the fixture making the installation process even faster. UL listed for Wet Locations. DLC Premium Listed. | ||
| Specifications: |
LFL7-15W-T: LFL7-30W/50W-T:  |
|
| Voltage: | 120~277V | |
| Power Factor: | > 0.9 | |
| NEMA Type: | 7H x 6V Beam Spread | |
| Housing: | ADC12 Die Cast Aluminum | |
| Finish: | UV Resistant Bronze Powder Coat Finish | |
| Lens Material: | High Light Transmittance Polycarbonate Lens with Weatherproof Gasket | |
| Ambient Operating Temp: | -40°C / -40°F to 40°C / 104°F | |
| Mount: | Trunnion Mount | |
| UL listed for Wet Location | E335594 | |
| Life Hours: | 50,000 | |
| Warranty: | 5 Year Limited Warranty | |
| Beam Angle: | 120x90° | |
| *Dimmable: | 0-10V/PWM/VR | |
| Dimensions | ||
| LFL7-15W-T: (A) 5" x (B) 5-13/16" x (C) 1-3/4" | ||
| LFL7-30W-T: (A) 7-1/2" x (B) 8-1/2" x (C) 2" | ||
| LFL7-50W-T: (A) 9-3/8" x (B) 9-3/4" x (C) 2" | ||
