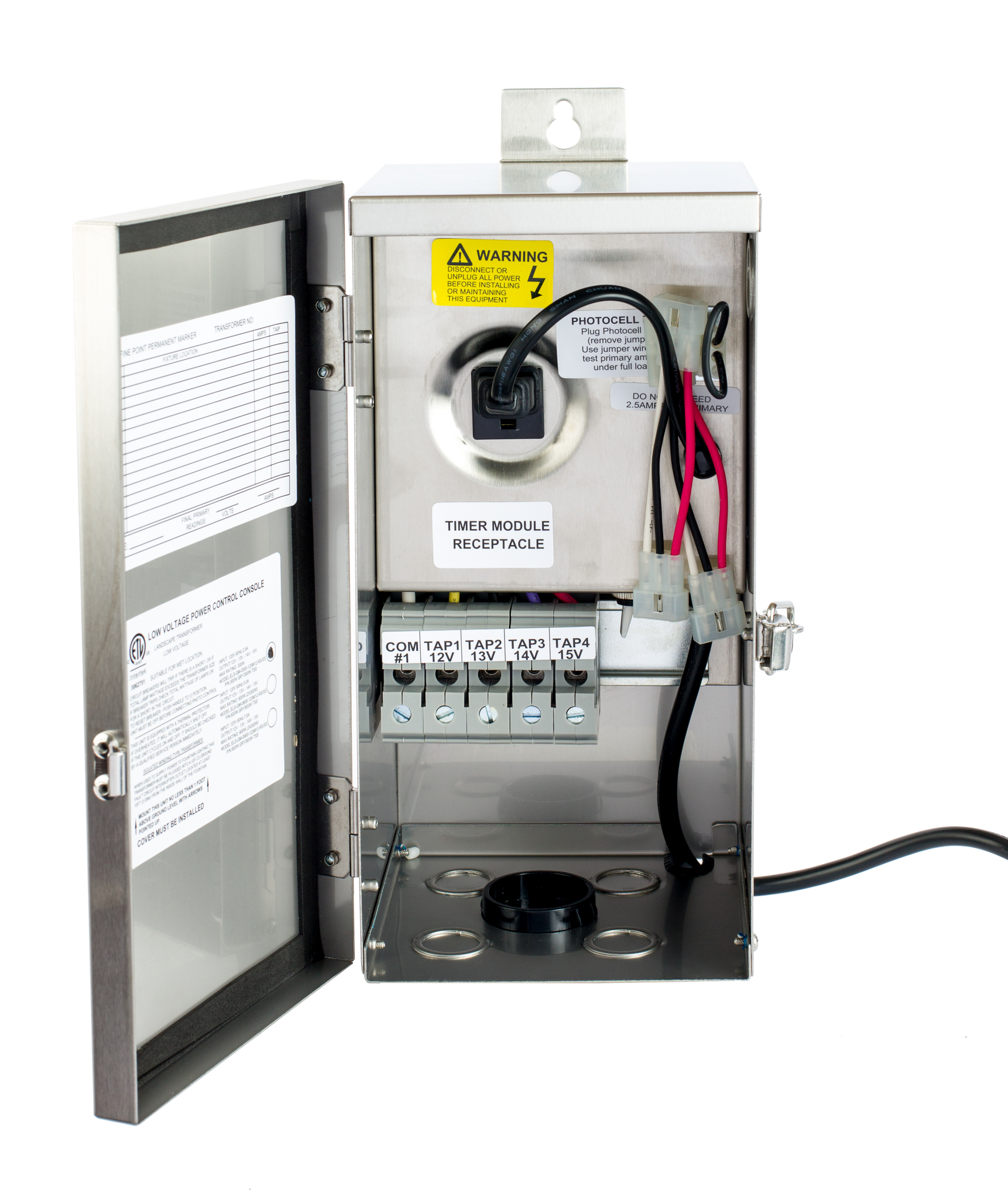

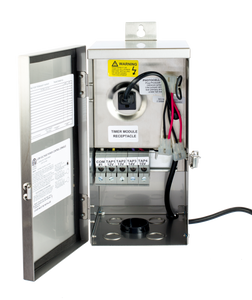

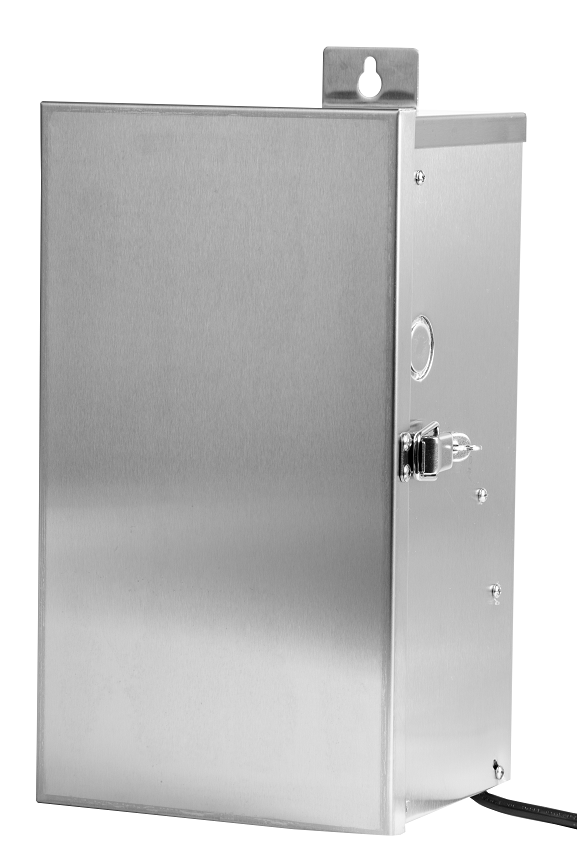

EMCOD Transformer EMT600SS-E, Stainless Steel - Hinge, 600W, 12V-15V AC w/ Timer

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 5A at full load
Output voltage without load: 12/ 13/ 14/ 15VAC
Output voltage fully loaded: 11.5/ 12.5/ 13.5/ 14.5VAC
Max. Total Wattage: 600W Max. per circuit:300W
Max. Output Current: 25/ 23/ 21/ 20A per circuit.
Efficiency: 93%
Load regulation: 4%

Electrical Diagram
