EMCOD EC2 SERIES - MAGNETIC DC EM4-200S12DC
Class 2 Magnetic Outdoor
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure

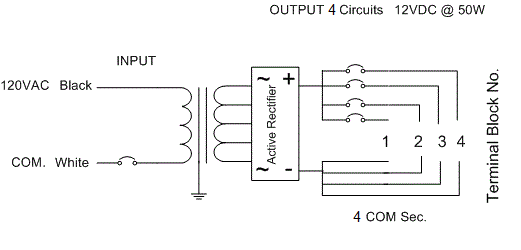

Electrical Parameters
| Input Voltage: | 120V 60Hz | |
| Max. input current: | 2A at full load | |
| Output voltage without load: | 12.8VDC | |
| Output voltage fully loaded: | 11.8VDC | |
| Max. Total Wattage: | 200W | Max. per circuit:50W |
| Max. Output Current: | 4.1A per circuit. | |
| Efficiency: | 90% | |
