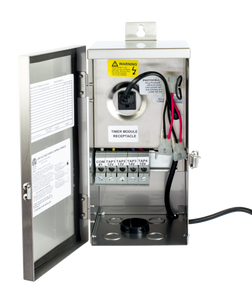

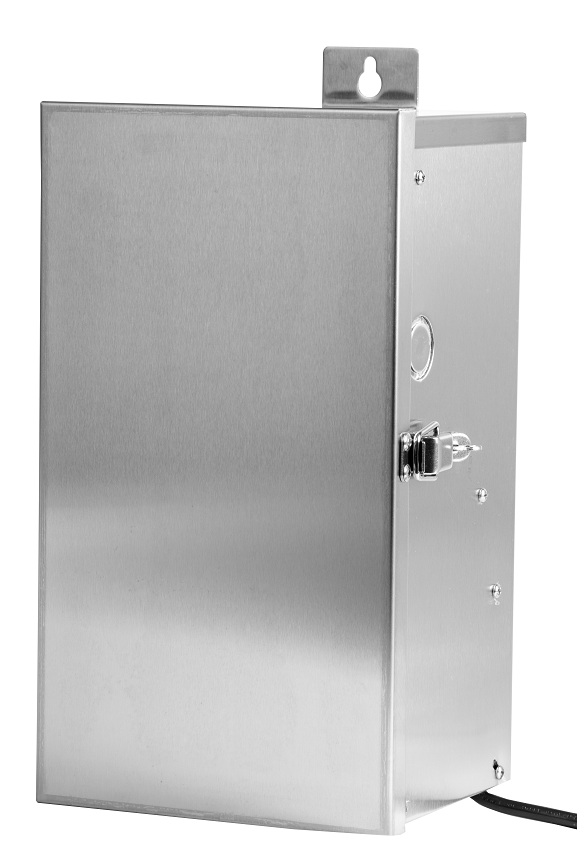

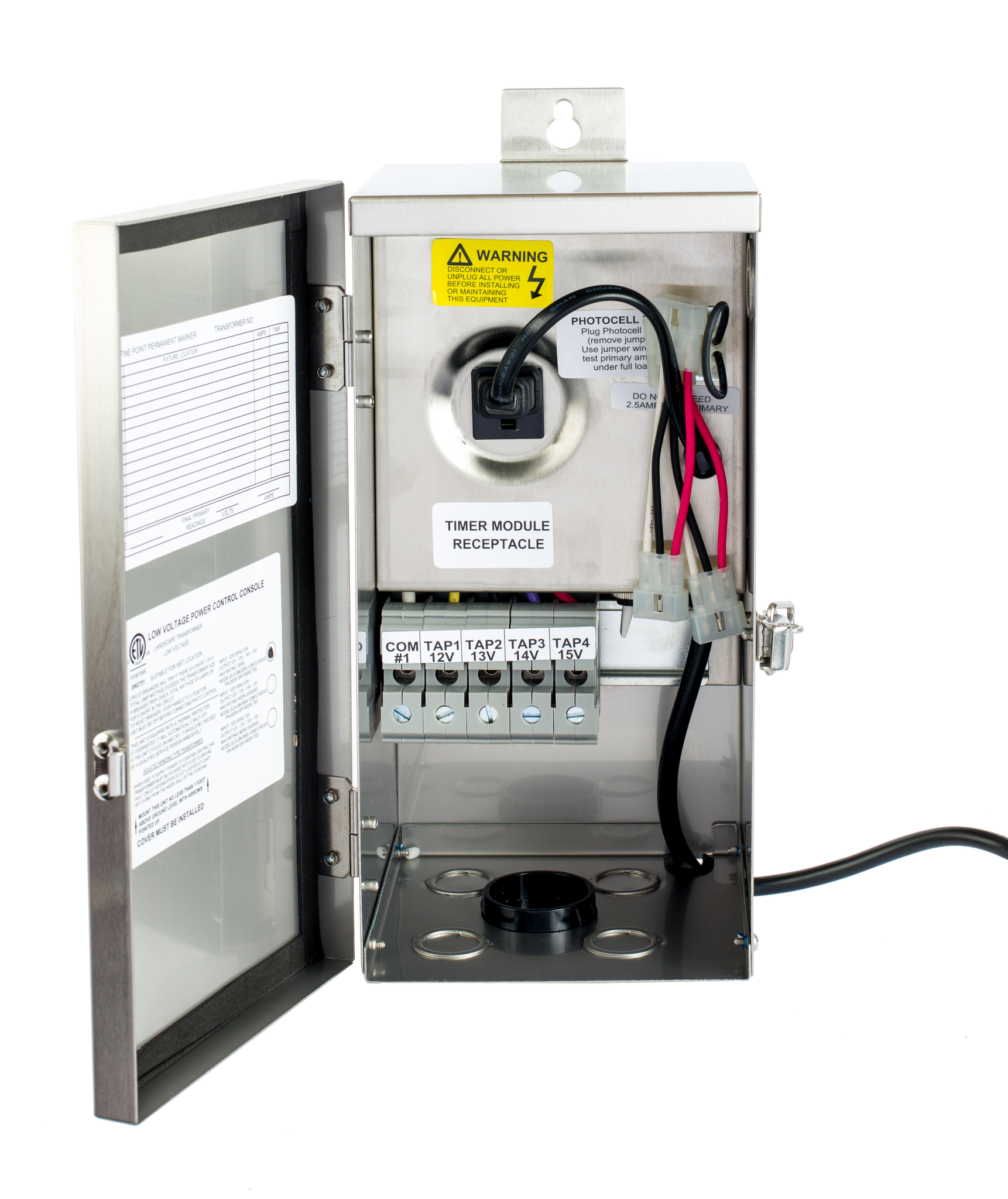

EMCOD Transformer EMT900SS-E, Stainless Steel - Hinge, 900W, 12V-15V AC w/ Timer
E
Electrical Parameters
| Input Voltage: |
120V 60Hz |
| Max. input current: |
7.5A at full load
|
| Output voltage without load: |
12/ 13/ 14/ 15VAC |
| Output voltage fully loaded: |
11.5/ 12.5/ 13.5/ 14.5VAC |
| Max. Total Wattage: |
900W |
Max. per circuit:300W |
| Max. Output Current: |
25/ 23/ 21/ 20A per circuit.
|
| Efficiency: |
94% |
| Load regulation: |
4% |
