SKU Orbit-ODU814M

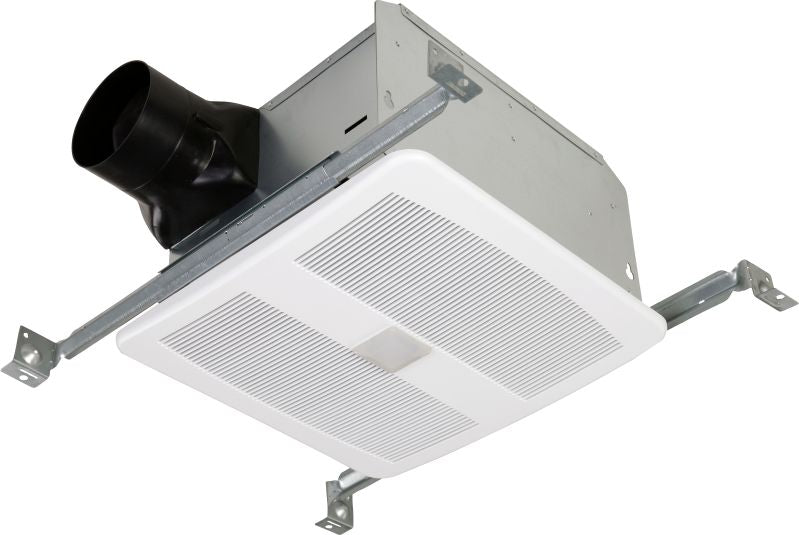

Orbit ODU814M Bathroom Fan, 80-140 CFM Dual Speed Deluxe Series w/Motion Sensor - 4" or 6" Duct

- Dimensions: 11-3/8" L x 10-1/2" W x 7-5/8" H
- Corrosion-Resistant Galvanized Steel Housing
- Adjustable double bar hanger system that extends up to 24"
- Sloped ceiling mounting capability up to 45 degrees
- Includes detachable 6" round duct with built-in draft damper
- IC Rated up to R40 insulation
Motor and Blower:
- Power rating of 120V / 60Hz
- Permanently lubricated, quick installation motor
- Energy efficient, brushless two speed DC motor for low speed continuous ventilation from 30 to 80 CFM
- Built-in dip switch to adjust high fan speed setting from 80 to 140 CFM
- Built-in overload disconnect for safety and longer motor life
- Low RPM for quiet operation
- ETL and cETL listed for tub/shower enclosure when connected to a GFCI protected branch circuit
 Grille: Humidity Sensor:
- Modern and elegant design
- Durable Polymeric Resin
- Torsion spring clips included for easy
